Standex-Meder Photo MOSFET Relay's
Standex Electronics features a full line of photo-MOSFET
solid state relays in a variety of mounting styles and pin-outs
for general purpose, low capacitance, high current, and high
voltage configurations.
Our photo MOSFET relays are designed for highly reliable and
solid state relays in a variety of mounting styles and pin-outs
for general purpose, low capacitance, high current, and high
voltage configurations.
Our photo MOSFET relays are designed for highly reliable and
long life fast switching (AC or DC) in a very small package,
while ensuring low off-state leakage currents, and stable on resistance.

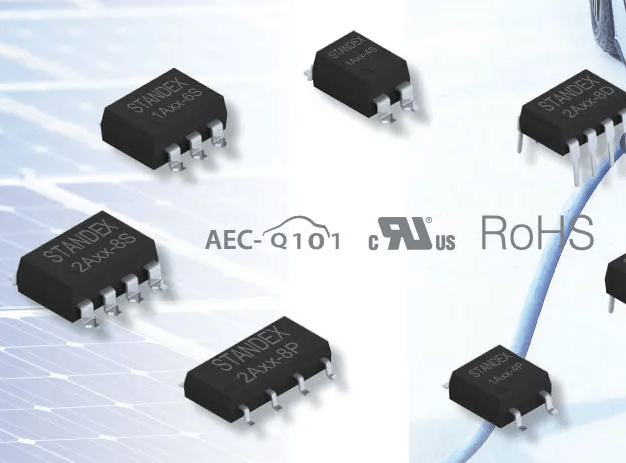

Mounting options include dual in-line (DIP) 4/6/8 pins,
surface mount (SMD) 4/6/8 pins, or small-outline (SOP) 4/8
pins depending on the MOSFET series.
High voltage 600-1500V versions are available and ideally
suited in Battery Management Systems for Electric Vehicles
and Solar Inverters.
FEATURES
- • AC or DC switching in a very small package
- • Fast switching, no contact bounce, low noise
- • High peak load currents 3 to 6 Amps (47 and 36 series)
- • Impervious to dirty environments, shock/vibration proof
- • AEC-Q101 Automotive (47, 38, 40 series)
- • Low off-state leakage current
- • Extremely high input to output isolation
- • Control low-level analog signals to high-level loads: (LED’s,
- relays, lamps, solenoids)
- • Stable on resistance
- • Long life and high reliability
