Selective PON Optical Power Meter for G-PON and XGS-PON

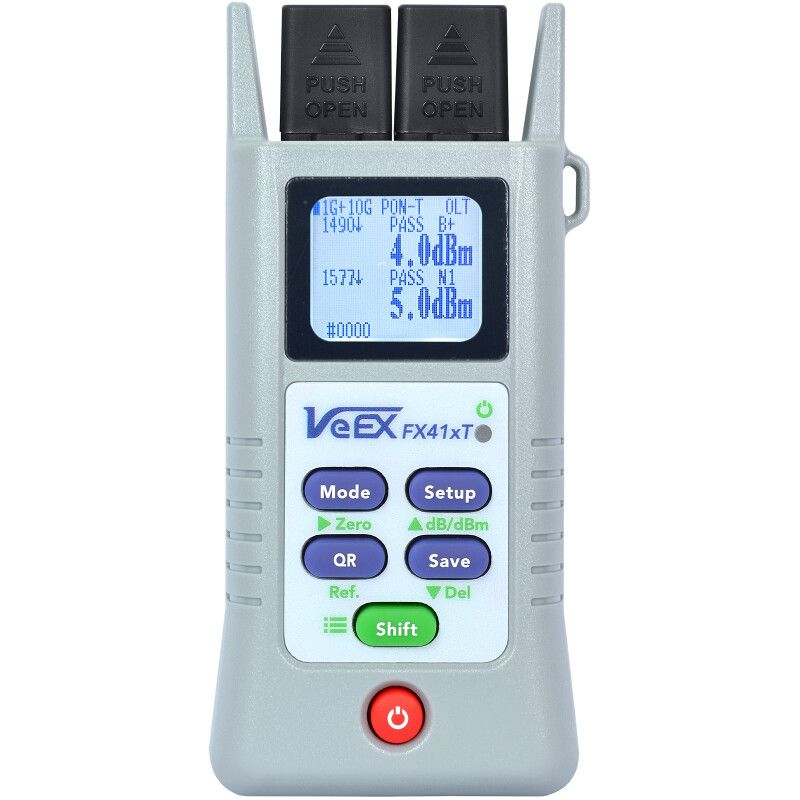

FX41xT, 10G Next-Gen and Legacy PON Optical Power Meter
Provides fast, simple, and precise measurement of G-PON and XGS-PON downstream signals. Miniature filters ensure each wavelength is measured accurately. The tester is well suited for installation, service verification, and troubleshooting of co-existent networks, including IEEE based E-PON and 10G-EPON deployments.
- Downstream signal verification for 1G/10G PON networks
- Simultaneous 1490/1577 nm signal level measurements
- Pass/Fail indication per ODN Class or User thresholds
- Alkaline or rechargeable NiMH batteries with Auto- off
- Save up to 2000 measurements with date and timestamp
- Save/display test results via NoApp™ QR code for mobile device transfer, post-processing, sharing, and upload
- Cloud-based NoApp™ service (included) allows for data augmentation via mobile phone or tablet. Secured and always up to date. No installation or updates required.
- Micro USB interface for 5V DC powering and battery charging
- High contrast backlit, monochrome display - visible outdoors and indoor with varying light conditions
- Splash and dust resistant keypad and chassis design
- Rugged polycarbonate chassis for demanding field conditions
- Fixed SC/APC connector interface with protective dust caps
- Visual Fault Locator (VFL) option
- Broadband Optical Power Meter (OPM) option
